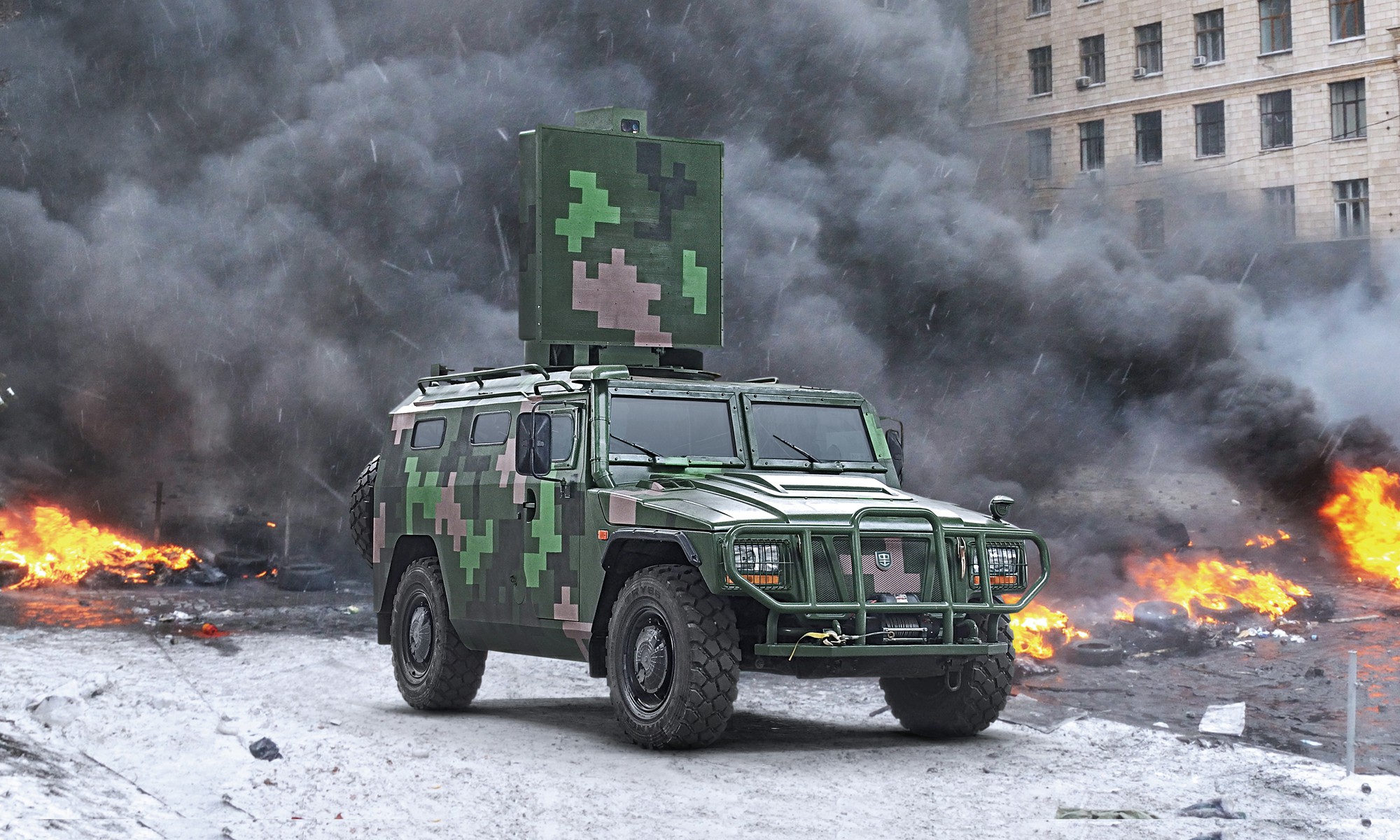

The Riot Control Infrasound Dispersing Vehicle is a platform developed to carry out riot control missions. The infrasound dispersing system directs infrasound waves toward the target rioters. It can effectively disperse the targets and public address to them. Its powerful and jarring medium-range acoustic beam can warn and deter the rioters while its close-range infrasound can be unbearable which will cause the target group to avoid and flee, thus disperse them. Its damage to the human body is non-fatal and reversible. The infrasound dispersing system is equipped with laser rangefinder. The power of infrasound can be adjusted according to the target distance and the intended application. It’s an effective and powerful platform for riot control which cannot cause fatal damage.
Main Parameters:
|
Item
|
Parameters
|
|
Engine
|
6.7L diesel turbo charge, intercooler, in line 6 cylinder
|
|
Engine power
|
245 hp @ 2500 rpm
|
|
Engine torque
|
950 N•m @ 1200-1400 rpm
|
|
Total combat weight
|
8,000 kg
|
|
Curb weight
|
6,400 kg
|
|
Payload
|
1,600 kg
|
|
Overall dimensions
|
5,980 x 2,400 x 2,800 mm (L x W x H)
|
|
Wheelbase
|
3,580 mm
|
|
Track width
|
1,916 mm
|
|
Crew members
|
6
|
|
Max. speed
|
≥125 km/h
|
|
Max. gradient
|
60%
|
|
Approach/departure angle
|
36o/38o
|
|
Min. ground clearance
|
≥400 mm
|
|
Min. turning diameter
|
≤18m
|
|
Max. driving side slope
|
40%
|
|
Vertical obstacle height
|
≥400 mm
|
|
Trench width
|
≥750 mm
|
|
Fording depth
|
≥0.8m/1.2m (with preparation)
|
|
Average ground pressure
|
≤190 kpa
|
|
Cruising range (road)
|
≥850 km
|
|
Environment temperature
|
-41oC~+46 oC
|
|
Ballistic protection
|
NATO STANAG Level I
|
|
Blast protection
|
NATO STANAG Level I
|
|
Gear box
|
Manual 6-speed forward + 1 reverse
|
|
Driving mode
|
Full time 4WD
|
|
Tire size
|
335 / 80 R20
|
|
Central tire inflation/deflation system (CTIS)
|
Standard
|
|
Max. sound pressure level (1m)
|
160 dB
|
|
Sound beam width (-3dB 1kHz)
|
±10o
|
|
Disperse distance (110dB)
|
10-280m
|
|
Send warning distance (110dB)
|
280-800m
|
|
Public addressing distance (110dB)
|
﹥3,000m
|
|
Rated power
|
1,970W
|
|
Max. power
|
2,300W
|
