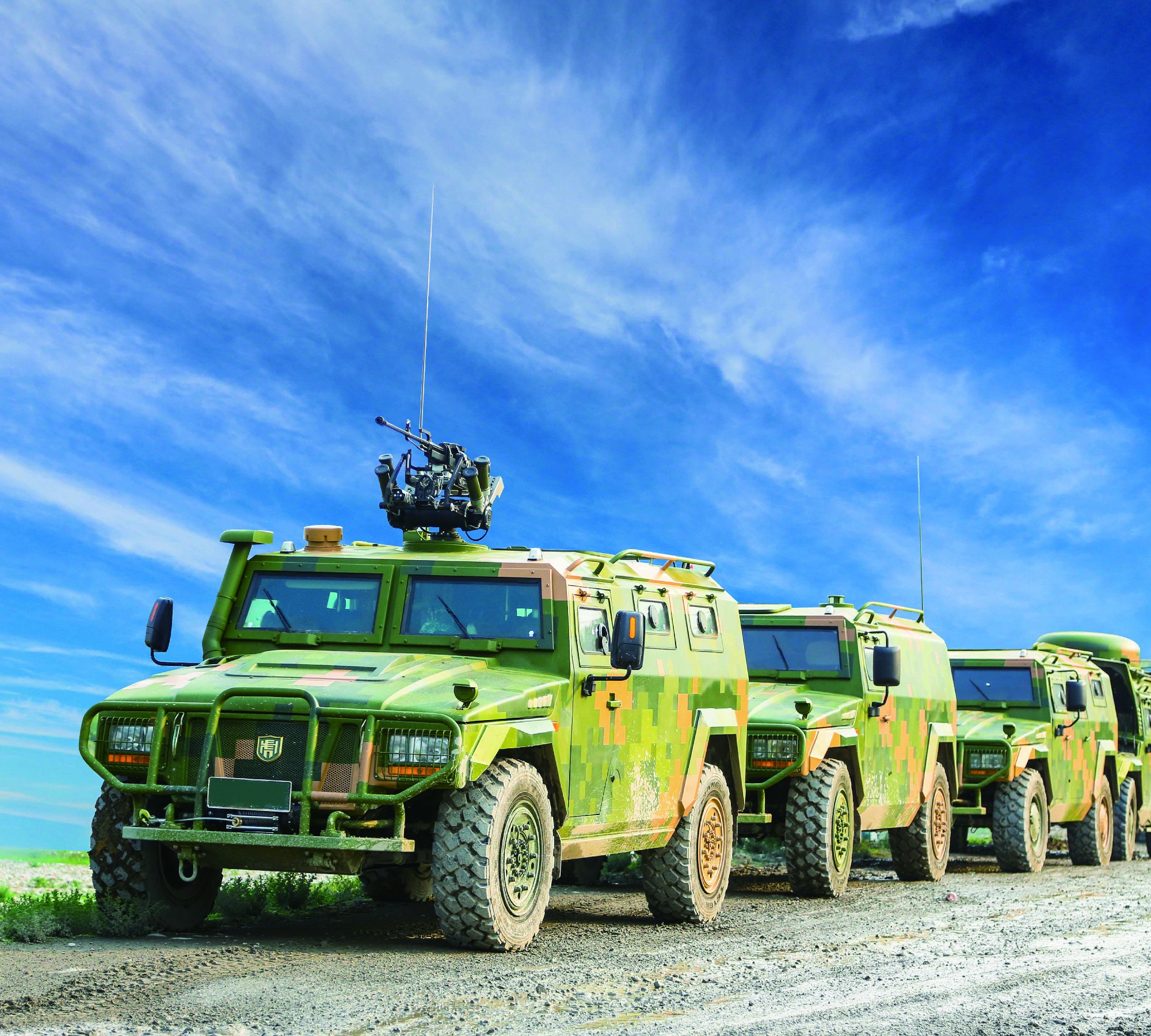

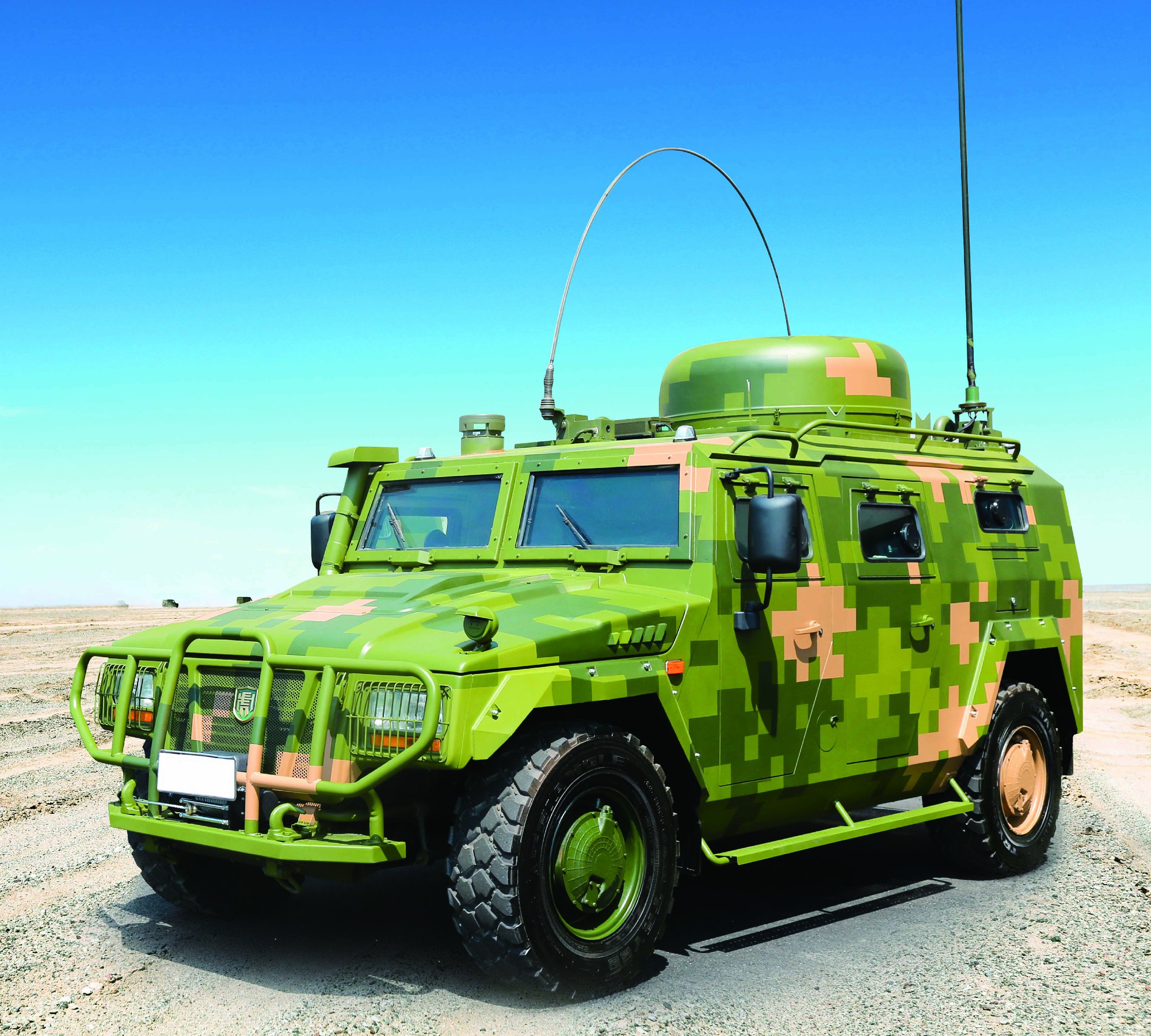

The command & communication vehicle is equipped with a full set of in-vehicle wireless communication system including satellite communication, wide band station, shortwave radio, GPS navigation & command machine, etc. Meanwhile, it is mounted with network control system such as switch network, video matrix and information processing systems etc. It can accomplish long distance voice, data and video transmission tasks under complex electromagnetic environment and intercommunicate with other mission units. It is used within the brigade to act as command post to control forces carrying out combat missions.
Main Parameters:
|
Item
|
Parameters
|
|
Engine
|
6.7L diesel turbo charge, intercooler, in line 6 cylinder
|
|
Engine power
|
245 hp @ 2500 rpm
|
|
Engine torque
|
950 N•m @ 1200-1400 rpm
|
|
Total combat weight
|
8,000 kg
|
|
Curb weight
|
6,400 kg
|
|
Payload
|
1,600 kg
|
|
Overall dimensions
|
5,980 x 2,400 x 2,800 mm (L x W x H)
|
|
Wheelbase
|
3,580 mm
|
|
Track width
|
1,916 mm
|
|
Seating capacity
|
2+4
|
|
Max. speed
|
≥125 km/h
|
|
Max. gradient
|
60%
|
|
Approach/departure angle
|
36o/38o
|
|
Min. ground clearance
|
≥400 mm
|
|
Min. turning diameter
|
≤18m
|
|
Max. driving side slope
|
40%
|
|
Vertical obstacle height
|
≥400 mm
|
|
Trench width
|
≥750 mm
|
|
Fording depth
|
≥0.8m/1.2m (with preparation)
|
|
Average ground pressure
|
≤190 kpa
|
|
Cruising range (road)
|
≥850 km
|
|
Environment temperature
|
-41oC~+46 oC
|
|
Ballistic protection
|
NATO STANAG Level I
|
|
Blast protection
|
NATO STANAG Level I
|
|
Gear box
|
Manual 6-speed forward + 1 reverse
|
|
Driving mode
|
Full time 4WD
|
|
Tire size
|
335 / 80 R20
|
|
Central tire inflation/deflation system (CTIS)
|
Standard
|
