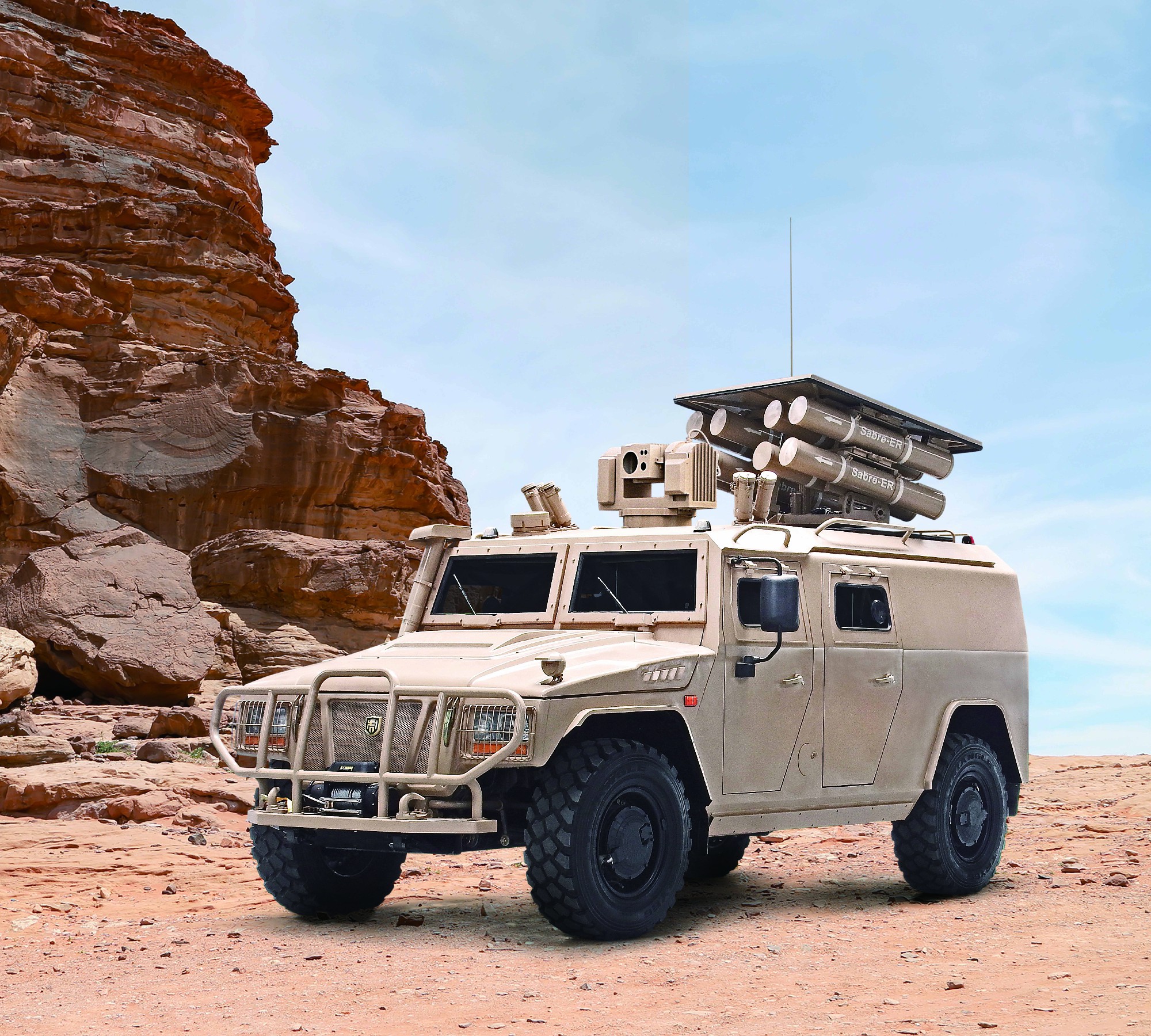

The Anti Tank Missile launching vehicle is a perfect platform developed to carry out precision attack missions. The fire control system is integrated in the vehicle. Three types of guidance methods and missile launcher optional from IR, TV and laser homing. It can be used to strike tanks, armored vehicles, low flying aircrafts, close range sea target, field fortification, etc. It can intercommunicate with the command and communication vehicle.
Main Parameters:
|
Item
|
Parameters
|
|
Engine
|
6.7L diesel turbo charge, intercooler, in line 6 cylinder
|
|
Engine power
|
245 hp @ 2500 rpm
|
|
Engine torque
|
950 N•m @ 1200-1400 rpm
|
|
Total combat weight
|
8,200 kg
|
|
Curb weight
|
6,400 kg
|
|
Payload
|
1,600 kg
|
|
Overall dimensions
|
5,980 x 2,400 x 2,800 mm (L x W x H)
|
|
Wheelbase
|
3,580 mm
|
|
Track width
|
1,916 mm
|
|
Crew members
|
2+8
|
|
Max. speed
|
≥125 km/h
|
|
Max. gradient
|
60%
|
|
Approach/departure angle
|
36o/38o
|
|
Min. ground clearance
|
≥400 mm
|
|
Min. turning diameter
|
≤18m
|
|
Max. driving side slope
|
40%
|
|
Vertical obstacle height
|
≥400 mm
|
|
Trench width
|
≥750 mm
|
|
Fording depth
|
≥0.8m/1.2m (with preparation)
|
|
Average ground pressure
|
≤190 kpa
|
|
Cruising range (road)
|
≥850 km
|
|
Environment temperature
|
-41oC~+46 oC
|
|
Ballistic protection
|
NATO STANAG Level I
|
|
Blast protection
|
NATO STANAG Level I
|
|
Gear box
|
Manual 6-speed forward + 1 reverse
|
|
Driving mode
|
Full time 4WD
|
|
Tire size
|
335 / 80 R20
|
|
Central tire inflation/deflation system (CTIS)
|
Standard
|
|
Missile launcher ammunition
|
8 Nos.
|
|
Max. strike range
|
8 km
|
|
Hit probability
|
80%
|
|
Guidance methods
|
IR, TV, Laser homing
|
